De'Ran Combination Gear Drives Dimension Table

HOME | PRODUCTS | SERVICES | CONTACT
EMAIL |  SELECTING A GEAR DRIVE

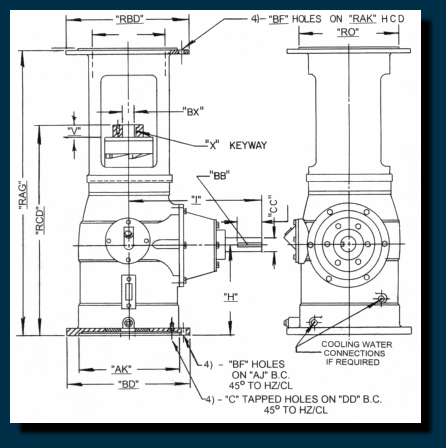

Combination Drive Drawing
MODEL BD AK CC BB H I BF AJ C DD RCD 26 RAK R0 RBD V BX MAX
MSJ20 10 8.251 1.249 5/16 x 5/32 7.25 12.31 13/32 9.125     18 26 9.125 8.249 12 1-1/2 1.0
MSJ30 10 8.251 1.249 5/16x 5/32 7.25 12.31 13/32 9.125     18 26 9.125 8.249 12 1-1/2 1.0
MS40A 16.5 13.501 1.874 3/8 x 3/16 11.43 18 11/16 14.75     27.43 38 14.75 13.499 16.5 2 1.5
MS60A 16.5 13.501 1.874 3/8 x 3/16 11.43 18 11/16 14.75     27.43 38 14.75 13.499 16.5 2 1.5
MS80A 16.5 13.501 1.874 3/8 x 3/16 11.43 18 11/16 14.75     27.43 38 14.75 13.499 16.5 2 1.5
MS100A 16.5 13.501 2.249 5/8 x 5/16 11.43 18 11/16 14.75     27.43 38 14.75 13.499 16.5 2 1.5
MS125A 16.5 13.501 2.249 5/8 x 5/16 11.43 18 11/16 14.75     27.43 38 14.75 13.499 16.5 2 1.5
MSJ150A 16.5 13.501 2.249 5/8 x 5/16 11.43 18 11/16 14.75     27.43 38 14.75 13.499 16.5 2 1.5
MS150A 20 13.501 2.437 5/8 x 5/16 13.75 20.87 11/16 18.25 5/8 -11 14.75 36.62 46.5 14.75 13.499 20 2-1/2 1.937
MS200B 20 13.501 2.437 5/8 x 5/16 13.75 20.87 11/16 18.25 5/8 -11 14.75 36.62 46.5 14.75 13.499 20 2-1/2 1.937
MS250A 20 13.501 2.937 3/4 x 3/8 13.75 21.75 11/16 18.25 5/8 -11 14.75 36.62 46.5 14.75 13.499 20 2-1/2 1.937
MS300A 20 13.501 2.937 3/4 x 3/8 13.75 21.75 11/16 18.25 5/8 -11 14.75 36.62 46.5 14.75 13.499 20 2-1/2 1.937
MS350A 20 13.501 2.937 3/4 x 3/8 13.75 21.75 11/16 18.25 5/8 -11 14.75 36.62 46.5 14.75 13.499 20 2-1/2 1.937
MS400A 20 13.501 2.937 3/4 x 3/8 13.75 21.75 11/16 18.25 5/8 -11 14.75 36.62 46.5 14.75 13.499 20/24.5 3 2.188
MS450A 20 13.501 2.937 3/4 x 3/8 13.75 21.75 11/16 18.25 5/8 -11 14.75 36.62 46.5 14.75 13.499 20/24.5 3 2.188
MSF500A 24.5 13.501 3.749 7/8 x 7/16 18 28 13/16 23.0 5/8 -11 14.75 45.50 59.75 14.75/23.0 13.499 24.5 4 2.937
MSF590A 24.5 13.501 3.749 7/8 x 7/16 18 28 13/16 23.0 5/8 -11 14.75 45.50 59.75 14.75/23.0 13.499 24.5 4 2.937
MSF750A 24.5 13.501 3.749 7/8 x 7/16 18 28 13/16 23.0 5/8 -11 14.75 45.50 59.75 14.75/23.0 13.499 24.5 4 2.937
MSF1000A 24.5 13.501 3.749 7/8 x 7/16 18 28 13/16 23.0 5/8 -11 14.75 45.50 59.75 14.75/23.0 13.499 24.5 4 2.937
